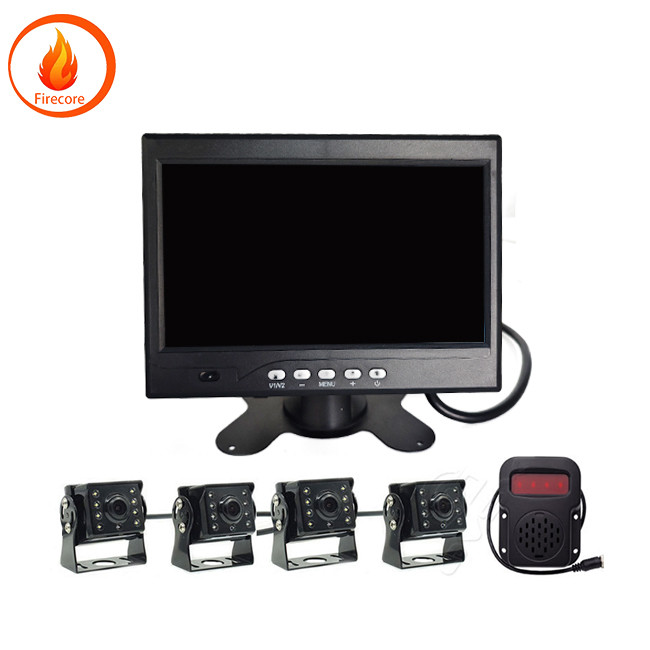

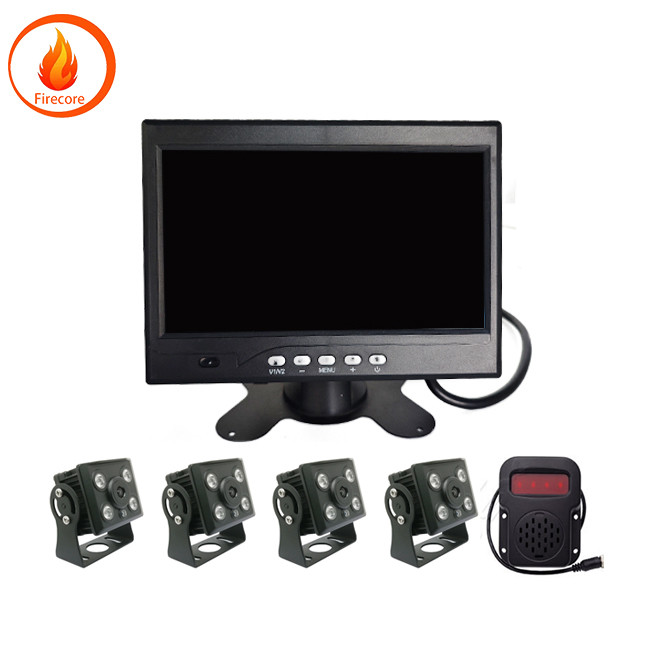

車両カメラモニタリングシステム 高解像度 防水 逆向広角 1080P 自動車モニタリング
リバースカメラは2種類あります ケーブルカメラと無線カメラです The wired method is simple and reliable but it requires wiring inside the vehicle body The wireless method does not require wiring inside the vehicle body and is easy to install but requires the addition of a wireless receiving module Due to the unsatisfactory reception performance of wireless receiving modules nowadays they are more or less susceptible to interference from the usage environment Generally reverse cameras still use wired methods
携帯ナビゲーションシステムがユーザが後ろを向いていることを知り,すぐに後ろを向く機能に切り替えるには,
3つの方法があります:
携帯ナビゲーションのボタンを使います 携帯ナビゲーションのボタンを使います
逆向きのバックビュースイッチボタンとして定義することができます 逆向きのバックビュースイッチボタンを押す前に,ユーザーはこのボタンを押すと,システムはすぐに逆向きのバックビューモードに切り替える, press the button again and the system will switch back to its original interface This method is simple and reliable and there is no need to add anything to the extension part of the bracket But it requires manual operation and is not intelligent enough
The second method is to detect the reverse signal (the simplest method is to take the control signal from the reverse light) When the user engages the reverse gear the reverse light lights up and provides a switch signal which is used to control the switch of the reverse image system This method is quite intelligent with good accuracy and stability
The third method is to continuously check whether the CVBS signal is valid within the written navigation system to determine whether it is reversing When reversing turn on the reversing camera and the camera will send a CVBS composite video signal to the interior of PND through the bracket interface If PND detects a valid video signal it is considered to be in reverse mode This method can be considered the most intelligent and accurate method
我々は,研究開発生産と車両モニタリングのプロメーカーです
車用ビデオレコーダー 車用カメラ 車用USBカメラ 車用USBカメラ
