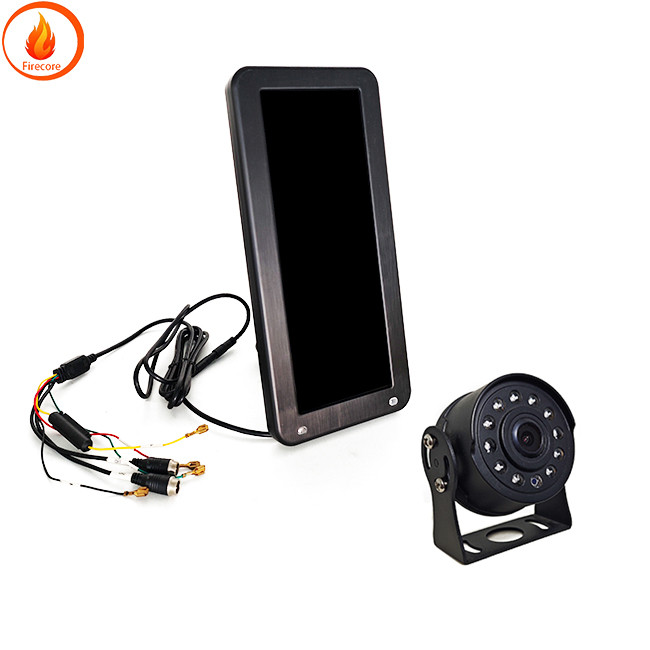

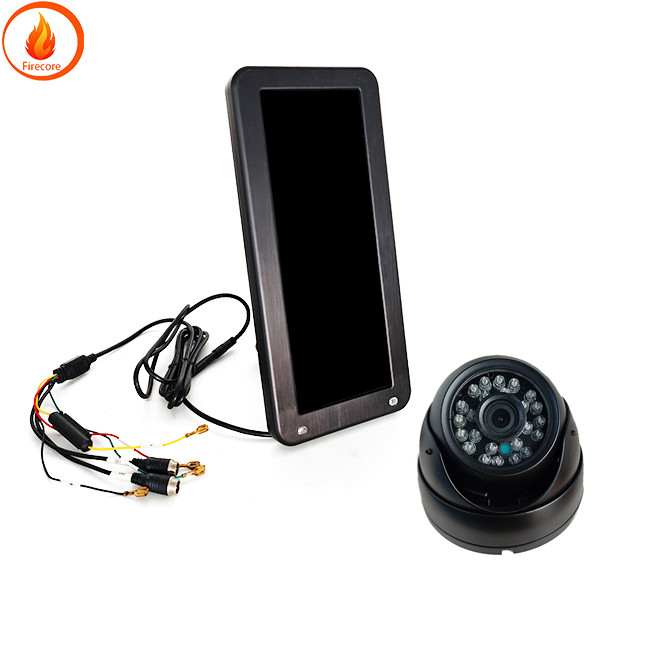

トラック セキュリティ カメラ 盲点側視 電子 後ろ視鏡 12.3 インチディスプレイカメラ
製品パラメータ:
表示:
1 サイズ: 12.3 " (8:3)
2,解像度: 1920 * 720P
背景照明:LEDの明るさ: 850cd/m2
4 対比: 800: 1
5 展望範囲: 上 85度 下 85度
6.電源: DC9 - 36V
7, OSD コントロール: ビデオ再生 ビデオ設定 画面設定 言語選択 逆設定 システム設定
8 パワー5W
信号入力: 720P / 960P / 1080P / CVBS混合入力
10 ファイル形式: AVI / JPG
メモリ: TF カード 256GB をサポート
12 ビデオ圧縮: H.264
記録解像度: 720P / 960P / 1080P / CVBS
14 システム言語: 中国語 英語
画面: 単画面 / 双画面 / 5: 5 / 6: 4 / 7: 3 CHI CH2 1080P を同時に表示する操作
16 トリガー制御: 1 方向 トリガー
ビデオ形式: PAL / NTSC 自動スイッチ
HDカメラ:
AHD 720P/960P/1080P
横幅 広角: 90 - 150
防水級:IP68
我々は,研究開発生産と車両モニタリングのプロメーカーです
車用ビデオレコーダー 車用カメラ 車用USBカメラ 車用USBカメラ
メールでご連絡ください:firecore1688@163.com
1つ目 The onboard monitoring terminal consists of a camera onboard DVR control equipment and wireless router The camera is responsible for collecting video data and encoding it by the onboard DVR The encoded data is transmitted to the remote command and dispatch center through a modular wireless router
2つ目 The transmission part mainly uses wireless and wired methods for transmission On sports vehicles our company's 3G network is mainly used for video transmission After DVR collects and compresses video signals the compressed video data is sent to the command and dispatch center through wireless network The wireless router completes the communication between DVR and IP network in the system Wireless routers maximize the throughput of the system making wireless surveillance videos smoother Wireless routers support VPN tunneling fixed IP dialing and bidirectional authentication function fully ensuring the security and stability of the system
3つ目 The monitoring center installs corresponding server systems and platform software in the monitoring center to achieve unified management of vehicles and yard equipment and distributes data and video streams for staff to monitor In practical application systems there will be multiple servers mainly including management servers recording servers streaming forwarding servers and several application servers each providing several functions
4つ目 The application software staff can operate and manage the system through the client software obtain corresponding videos and other related information according to user permissions and also issue instructions to the driver through the system for remote command with a strong sense of presence In emergency situations the system can be used to command and guide passengers
5 システム相互接続: To further connect with other systems through this platform the platform software reserves multiple interfaces to achieve information sharing and linkage with industries such as public security media, and logistics It also has the function of publishing information to public users Other business systems can also be integrated into this system to achieve unified operation and effective linkage of various systems
